Key Details
- Status Operational
- Availability Commercial
- Test Types Angled pull Vertical pull
- Max Object Length (metres)18
- Max Object Width (metres)18
- Max Object Height (metres)16
- Max Weight (ton)50
- Pull Load (ton)2250
- Break Test (ton)1800
- Measurement 3D laser meas. Elongation control/ meas.
- Outputs Load diagrams
Test Facility Description
The first in the world of its kind.

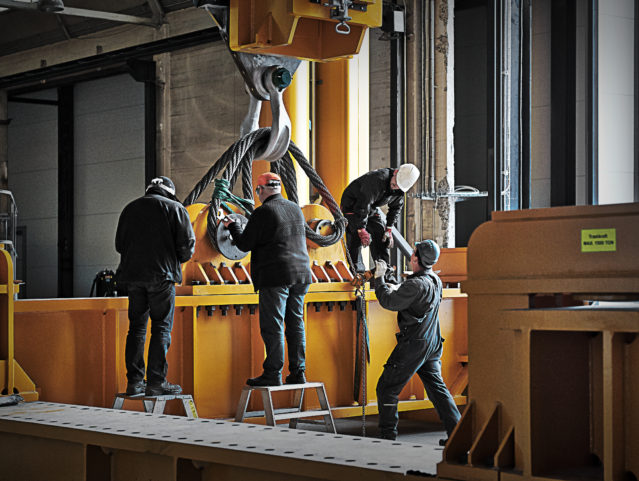

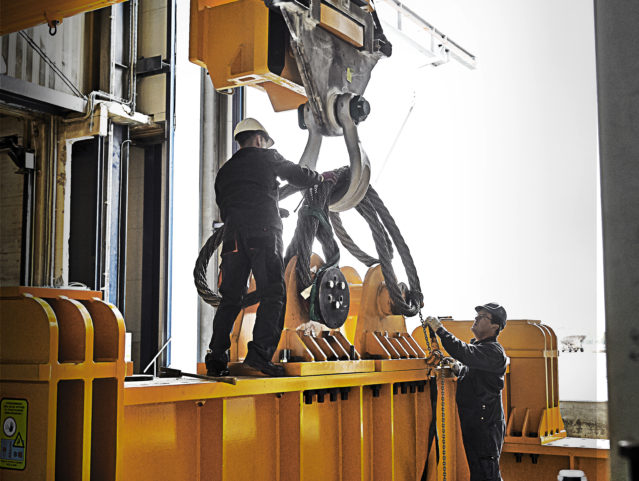

In the giant 2.250 ton test tower we use the latest technology and 3D laser measurement to document how the test subject reacts during different load situations. We can simulate close to a real operation while increasing safety and reducing your testing costs. The 2.250 ton test tower bring new opportunities to ensure safe testing.
Learn more about the test tower
